| 1-1/4〞Flexible RF Coaxial Cable |
 |
| Type Type No. |
Standard cable HCTAY-50-32
Fire-retardant cable HCTAYZ-50-32 |

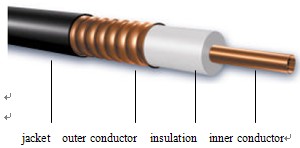

| Construction |
Inner
conductor |
Material |
Copper tube |
| Diameter（mm） |
13.0±0.1 |
| Insulation |
Material |
Foamed PE |
| Diameter（mm） |
32.0±0.25 |
Outer
conductor |
Material |
Annular
corrugated
copper tube |
| Diameter（mm） |
35.8±0.25 |
| Jacket |
Material |
LLDPE or fire-retardant PE |
| Min.thickness（mm） |
＞1.3 |
| Diameter（mm） |
38.7±0.30 |
| Mechnical Characteristics |
| Bending radius（mm） |
Single bend |
200 |
| Repeated bend |
380 |
| Tensile strength（N） |
2000 |
| Cable weight（kg/km） |
1100 |
| Recommended temperature（℃） |
Storage |
-70~+85 |
| Installation |
-40~+60 |
| Operating |
-55~+85 |
|
| Products meet the RoHS requirement, and according to the requirements of RoHS, you can see the RoHS mark on the outside package. |
|
| Electrical Characteristics |
| Inner conductor DC resistance（Ω/km） |
0.78 |
| Outer conductor DC resistance（Ω/km） |
0.66 |
| Characteristic impedance（Ω） |
50±1 |
| Capacitance（p F/m） |
76 |
| Velocity（%） |
88 |
| Dielectric strength（KV） |
10.0 |
| Insulation resistance（MΩ/km） |
＞1×104 |
| Peak power rating（KV） |
205 |
| Peak voltage（V） |
4300 |
| Cut-off frequency（GHz） |
3.7 |
| Attenuation and Average power |
Frequency
（MHz） |
Attenuation
（@20℃，d B/100m） |
Average power（kv） |
| 150 |
1.03 |
11 |
| 450 |
1.88 |
5.76 |
| 800 |
2.60 |
4.15 |
| 900 |
2.78 |
3.87 |
| 1000 |
2.96 |
3.64 |
| 1500 |
3.76 |
2.85 |
| 1800 |
4.19 |
2.38 |
| 2000 |
4.46 |
2.69 |
| 2200 |
4.74 |
2.24 |
| 2500 |
5.12 |
2.05 |
| 3000 |
5.74 |
1.84 |
| VSWR |
| 800MHz~1000MHz |
1.13 |
| 1700MHz~2000MHz |
1.13 |
| 2100MHz~2400MHz |
1.13 |
|
Note：
For fire-retardant jackter cable，recommended temperature：
Storage：-30℃~+80℃
Installation：-25℃~+60℃
Operating temperature：-30℃~+80℃ |
|
