1-5/8〞Aluminum RF coaxial cable
|
|
|
Type Type No.
|
Standard cable HHTALY-50-42
Fire-retardant cable HHTALYZ-50-42
|
|

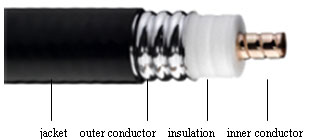

Construction
|
Inner
conductor
|
Material
|
Helical
corrugated
copper tube
|
|
Diameter（mm）
|
17.3±0.15
|
|
Insulation
|
Material
|
Foamed PE
|
|
Diameter（mm）
|
42.5±0.30
|
Outer
conductor
|
Material
|
Annular
corrugated
Aluminum tube
|
|
Diameter（mm）
|
46.5±0.20
|
|
Jacket
|
Material
|
LLDPE or fire-retardant PE
|
|
Min.thickness（mm）
|
＞1.5
|
|
Diameter（mm）
|
49.5±0.30
|
|
Mechnical Characteristics
|
|
Bending radius（mm）
|
Single bend
|
200
|
|
Repeated bend
|
500
|
|
Tensile strength（N）
|
1800
|
|
Cable weight（kg/km）
|
780
|
|
Recommended temperature（℃）
|
Storage
|
-70~+85
|
|
Installation
|
-40~+60
|
|
Operating
|
-55~+85
|
|
|
Products meet the RoHS requirement, and according to the requirements of RoHS, you can see the RoHS mark on the outside package.
|
|
|
Electrical Characteristics
|
|
Inner conductor DC resistance（Ω/km）
|
1.30
|
|
Outer conductor DC resistance（Ω/km）
|
0.68
|
|
Characteristic impedance（Ω）
|
50±1
|
|
Capacitance（p F/m）
|
75
|
|
Velocity（%）
|
88
|
|
Dielectric strength（KV）
|
15.0
|
|
Insulation resistance（MΩ/km）
|
＞1×104
|
|
Peak power rating（KV）
|
310
|
|
Shielding attenuation，（dB）
|
＞＞120
|
|
Cut-off frequency（GHz）
|
2.7
|
|
Attenuation
|
Frequency
（MHz）
|
Attenuation
（@20℃，d B/100m）
|
|
150
|
0.877
|
|
450
|
1.58
|
|
800
|
2.17
|
|
900
|
2.32
|
|
1000
|
2.46
|
|
1800
|
3.45
|
|
2000
|
3.67
|
|
2200
|
3.88
|
|
2400
|
4.08
|
|
2750
|
4.43
|
|
VSWR
|
|
800MHz~1000MHz
|
1.15
|
|
1700MHz~2200MHz
|
1.15
|
|
5MHz~3000MHz
|
1.25
|
|
Note：
For fire-retardant jackter cable，recommended temperature：
Storage：-30℃~+80℃
Installation：-25℃~+60℃
Operating temperature：-30℃~+80℃
|
|
